Imerys Double HP 20 Clay Tile


Imerys Double HP 20 Clay Tile

A large, flat, clay interlocking tile, the Double HP20 has a thin, tapered leading edge. The slate colour tile can be specified as an economical natural alternative to man-made and other slates. This product whilst being large format has the appearance of a small module interlocking slate or tile coupled with low pitch suitability.

Features

Innovative

The Double HP20 is a single large interlocking tile with the appearance of two small format tiles. This produces a roof that satisfies the need for a smaller module tile and low pitch suitability yet is economical to lay.

Ingenious

The tile has a thin leading edge and once installed the slate colour tile can be specified as an economical natural alternative to man-made or natural slates.

Complete

A wide range of compatible fittings are available for this tile that is becoming increasingly popular.

Technical Data

Quantity per pallet: 240 tiles
Minimum headlap: 80mm
Weight per m2: 41kg
Minimum roof pitch: 17.5°
Batten coverage: 4 per m2
Nail size: 50 x 3.35mm Alloy

Colours

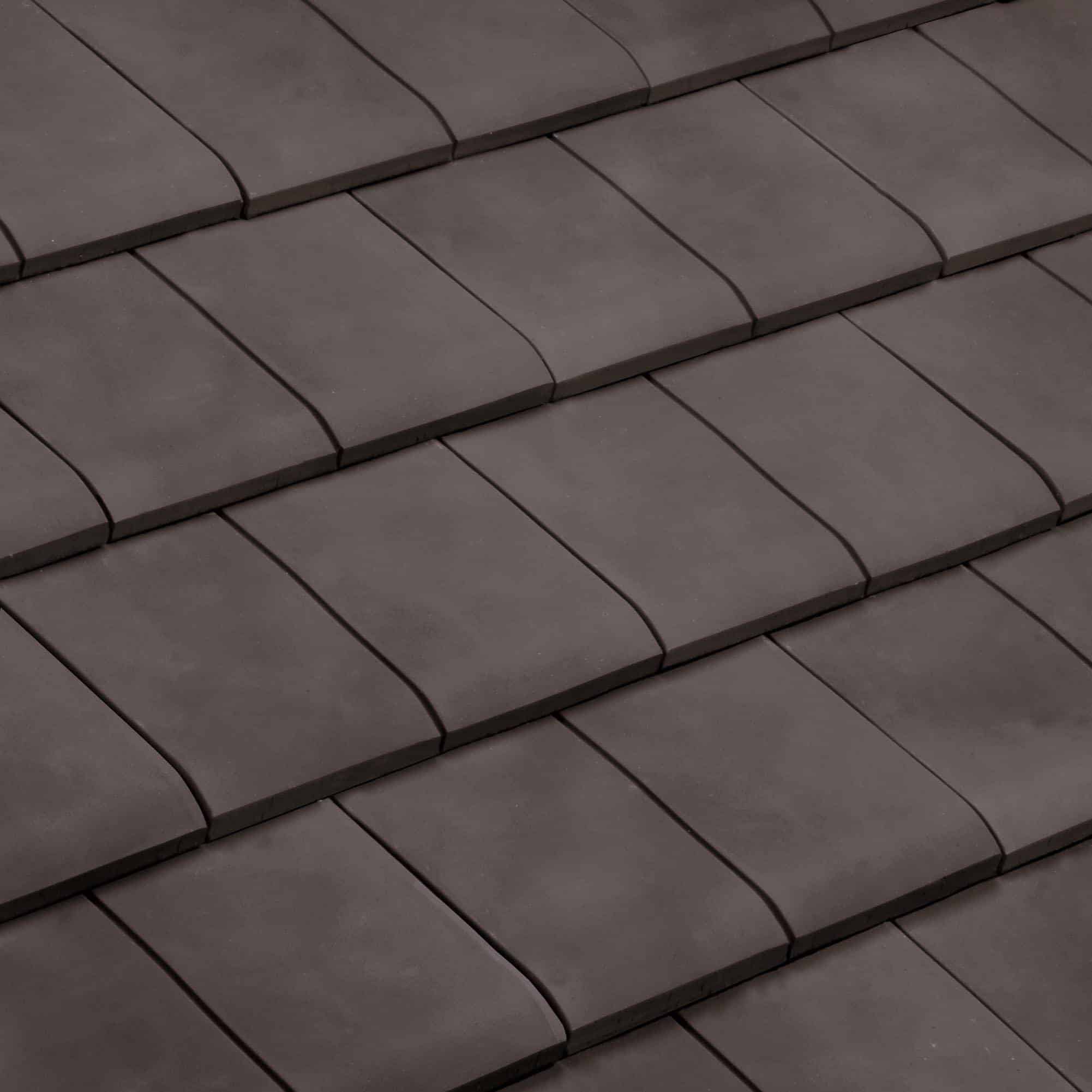

Slate

Double HP 20

Burnt Red

Double HP 20

Terre De Beauce

Double HP 20

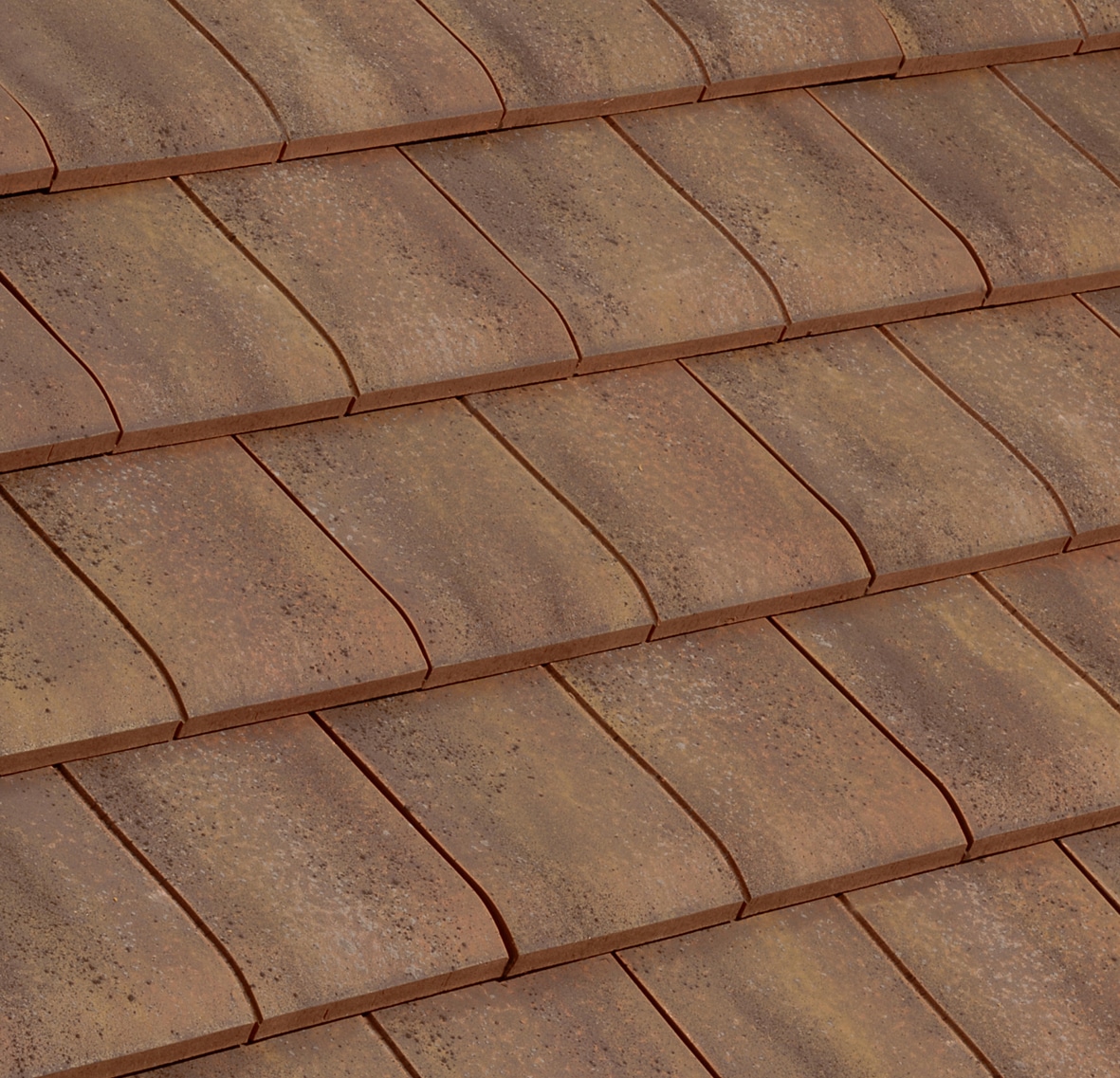

Vallée De Chevreuse

Double HP 20

Examples


dhp20-chevreuse
dhp20-chevreuse-2
dhp20-slate
