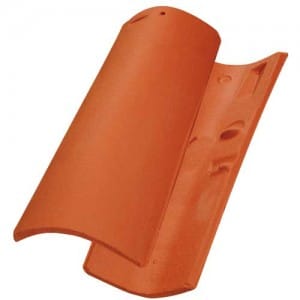

Terreal Canalaverou 40AG Barrel Tile
Canalaverou 40AG elegantly and effectively combines the appeal of a classic barrel tile with the technical benefits of a pressed tile. The locks of this fixed-gauge model prevent the tiles from sliding, and the different pan models (curved with or without nibs) allow this tile to fit any roof.

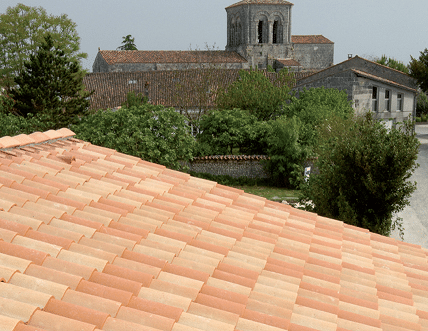

The Canalaverou 40AG typically covers roofs in Aquitaine, Vendée and Poitou-Charentes, regions along the Southwestern coasts of France.
Dimensions cover tile (mm) 400 x 190 x 165
Dimensions pan tile (mm) 408 x 190 x 160
Unit weight cover tile (kg) 1.9
Unit weight pan tile (kg) 2
Tiles per sq.m. (pan or cover tiles alone) 17 to 18.6
Weight per sq.m. (kg) (pan and cover tiles) 66.2 to 72.7
Tiles per pallet* 600
Minimum pitch 17.5°
